[en] Updated Status LEDs for Advanced Routing
[en] Firmware 0.9 is a major revision to Quasar Science RR-R2 signal routing. While Basic Routing maintains the previous Luci di stato and behaviors from 0.8B, new Status LED color pairs have been introduced to accommodate the addition of Advanced Routing.
[en] Advanced Routing generally follows an Input Color / Output Color scheme applied to the Data LED & Wireless LED.

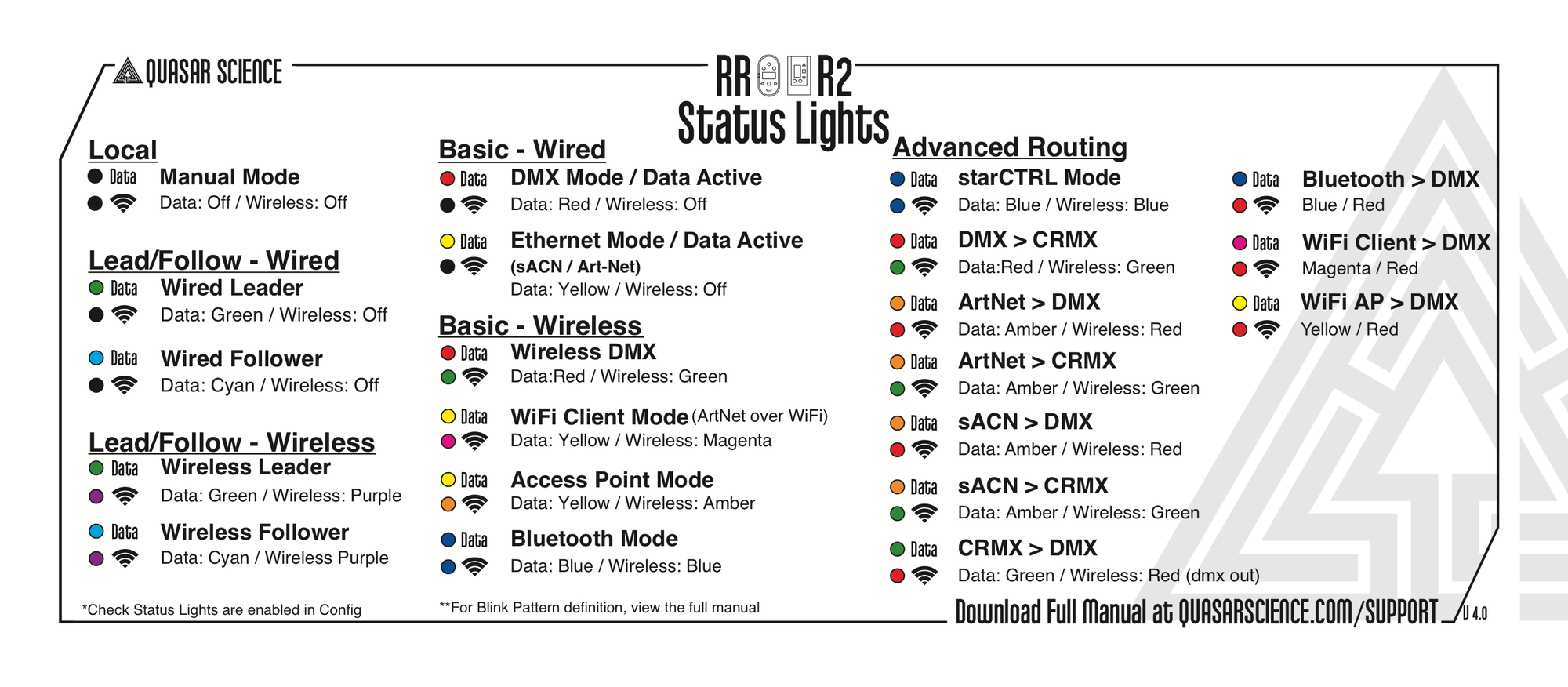

[en] If you are running FW 0.9 on your fixtures (and we really suggest you do!) here is the quick guide for all 0.9 Status LED color pairs. (click to enlarge image):
