Controllo via cavo: DMX


Le luci RR e R2 hanno porte RJ45 per il controllo con DMX512 o con Ethernet. È possibile utilizzare convertitori DMX da 5 pin a RJ45 convenzionali.

[en] To set Wired DMX Input:

  1. [en] Go to [Config Menu] → [DMX Channel] and set the desired DMX Address

  2. [en] [Right Arrow] → [# of Pixels] and set the desired Pixel Count

  3. [en] [Right Arrow] → [DMX Profile] and select the desired DMX Profile

  4. [en] [Right Arrow] → [Wired Mode] and select DMX512

Per impostare le lampade suDMX cablatoControllo:

  1. Go to Config → Wired Settings, set the Wired Mode to “DMX512”

  2. Go to Config → Wireless Settings, set the Wireless Mode to “Off” (default)

  3. Wonder why you haven't upgraded to FW 0.9 yet.

[en] Wired Priority

[en] When the fixture has been set to Wired Input (DMX or Ethernet) the hard line will take priority over any active Wireless connection and will also ignore changes from Manual control.

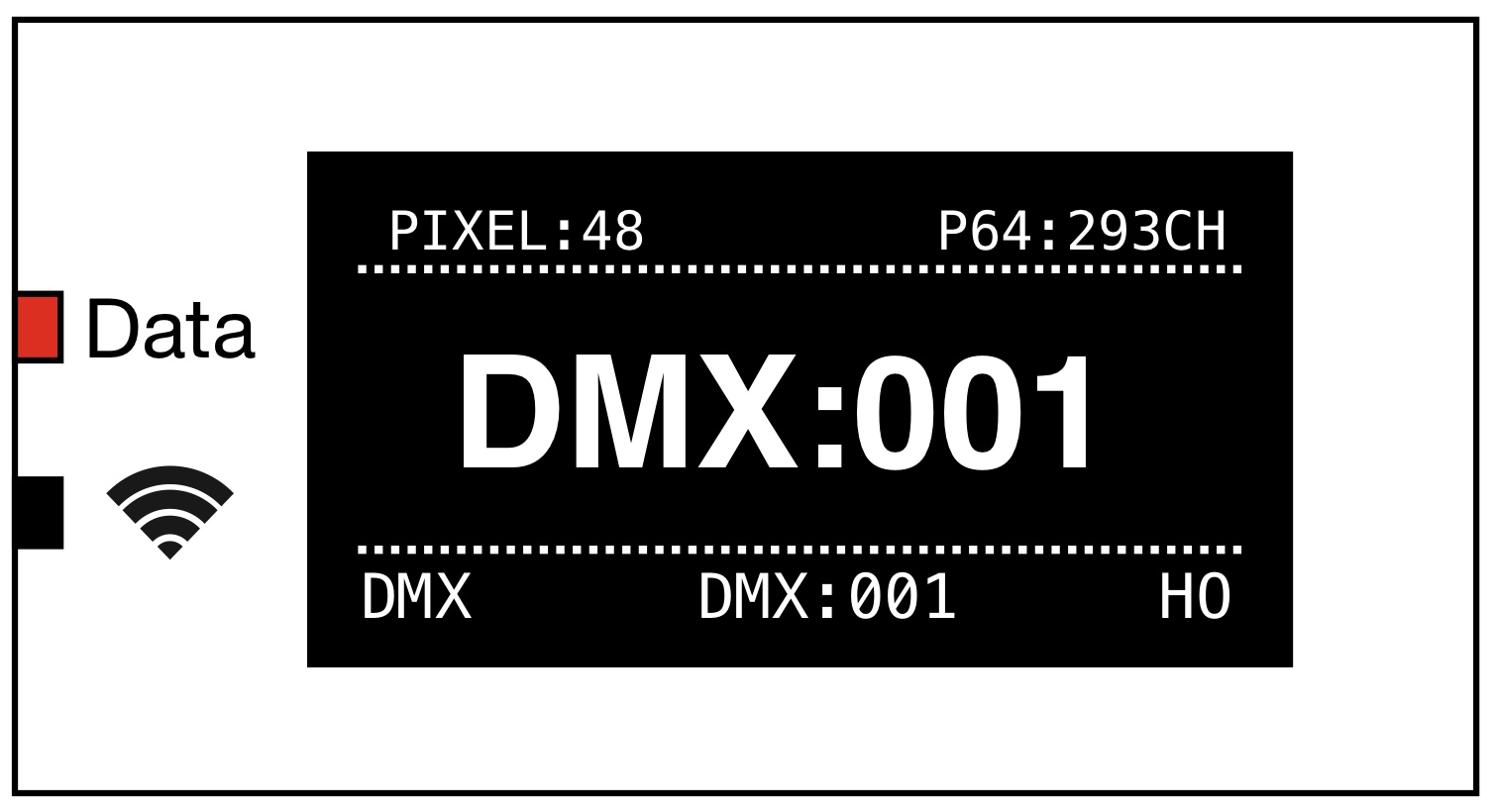

Quando le luci sono controllate con DMX cablato, lo schermo visualizza l'indirizzo iniziale DMX, il numero di pixel, il profilo, il numero totale di canali e Modalità di uscita. Se le luci perdono i dati cablati, manterranno l'ultimo sguardo fino a quando i dati non verranno ripristinati o non verrà implementata una modifica manuale. Se la luce è in modalità multipixel e perde i dati cablati, le successive modifiche manuali prenderanno lo stato del pixel uno e lo applicheranno all'intera luce.

[en] Each light has a DMX IN port and DMX OUT port, which allows for daisy chaining.

[en] Data Loss Behavior

[en] Deprecated behavior FW 0.8B and earlier: If the light is in multi-pixel mode the and it loses wired data subsequent manual changes will take the state of pixel one and apply it to the entire light.

[en] FW 0.9 behavior: Upon data loss the fixtures will Hold Last Look until A.) Data is resumed, B.) Fixture is rebooted, C.) Manual settings are changed, in which the fixture will follow the Manual settings.

Nota

[en] When the light is set to DMX mode, the DMX signal is always passed to the Output port so you can daisy chain other dmx devices.

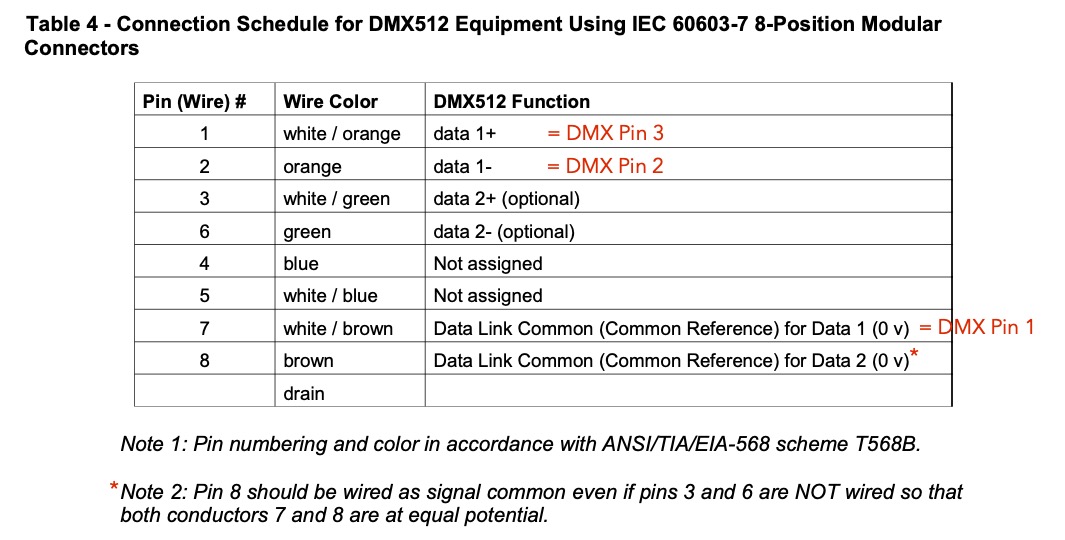

[en] About RJ45-to-XLR DMX adapters

[en] When you use RJ45-DMX connections they must comply with the ANSI/EIA-568 wiring scheme T568B:


  • RJ45 Pin 1: DMX + = DMX 5 Pin: Pin 3

  • RJ45 Pin 2: DMX – = DMX 5 Pin: Pin 2

  • RJ45 Pin 7/8: Terra = DMX 5 Pin: Pin 1

Importante

[en] When using XLR-to-RJ45 adapters for DMX input please be aware that some cheap adapters (i.e. found on Amazon) are not wired correctly and will not work with Quasar Science fixtures.

[en] To avoid any problems you can obtain the correct RJ45 adaptors directly from the Quasar Science online store
