[en] Advanced Routing Diagrams
[en] A number of new internal routing modes have been introduced in firmware 0.9
[en] While the [en] Advanced Routing Overview gives a brief definition of each mode, the following diagrams are visual aids to what each Advanced Routing mode can do. (Click an image to zoom in.)

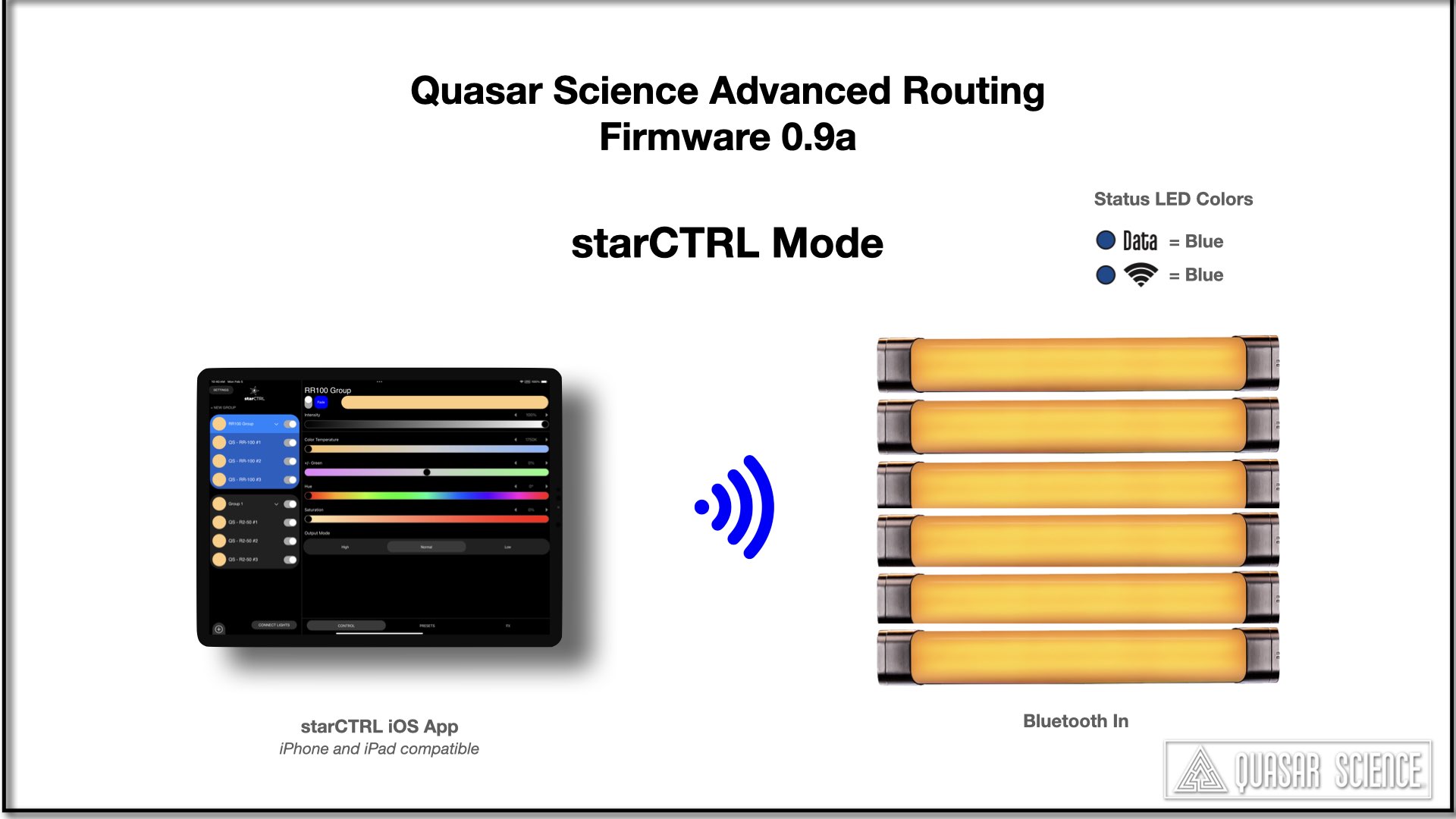

![starCTRL Mode](image/166ccd473384d1.jpg)

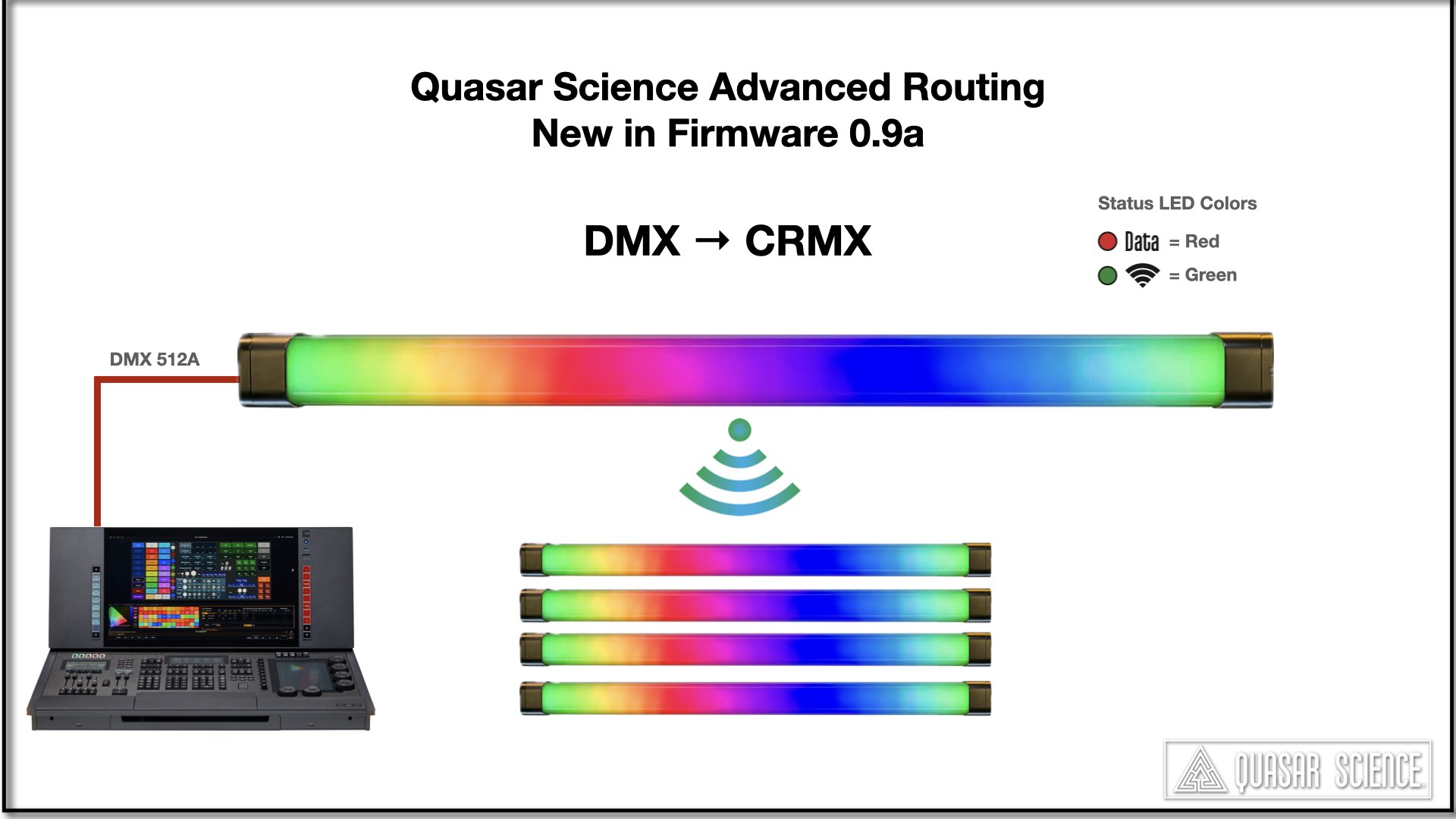

![DMX to CRMX](image/166ccd47362610.jpg)
![ArtNet to DMX](image/166ccd47399276.jpg)

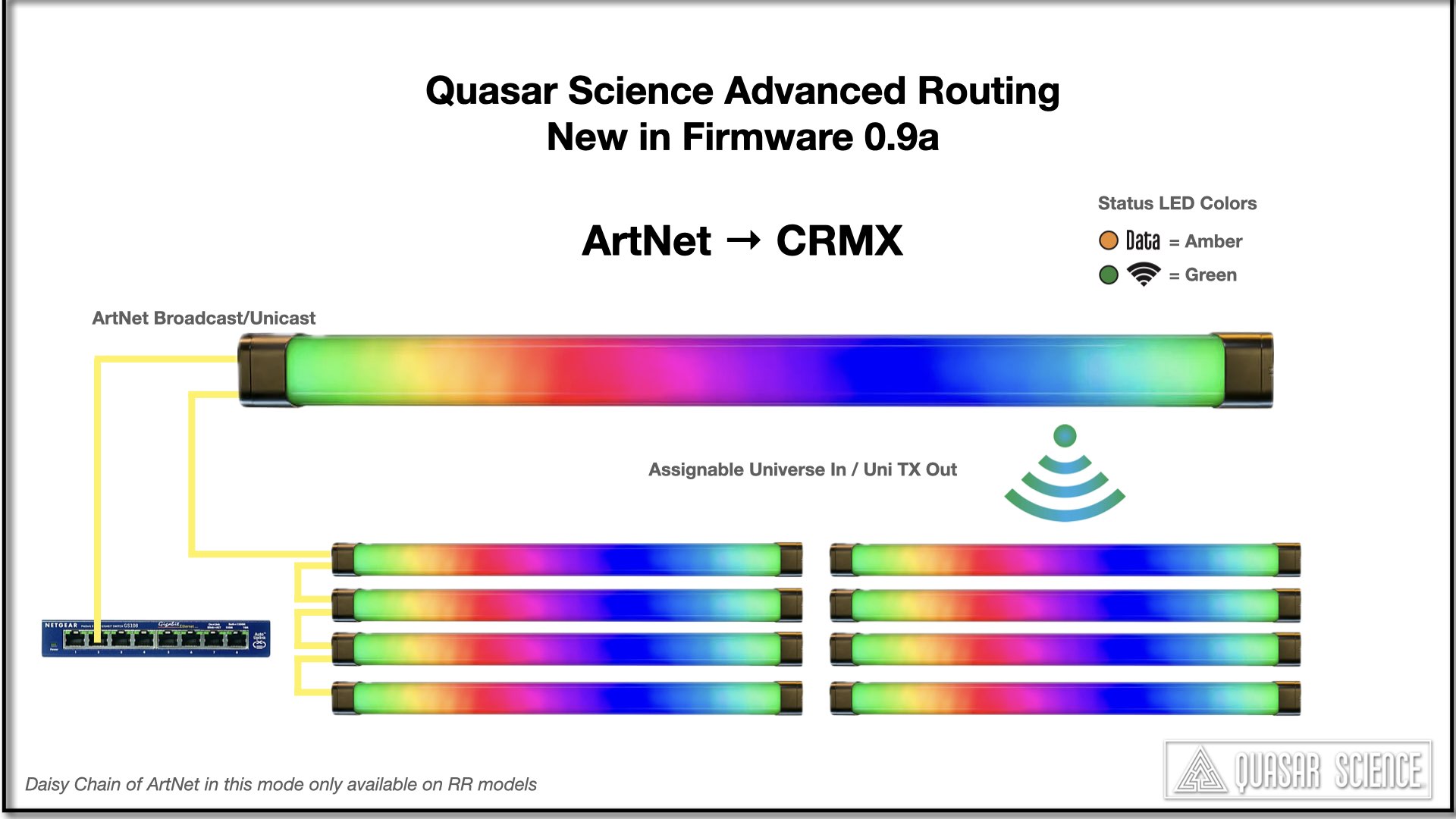

![ArtNet to CRMX](image/166ccd473bb5f6.jpg)

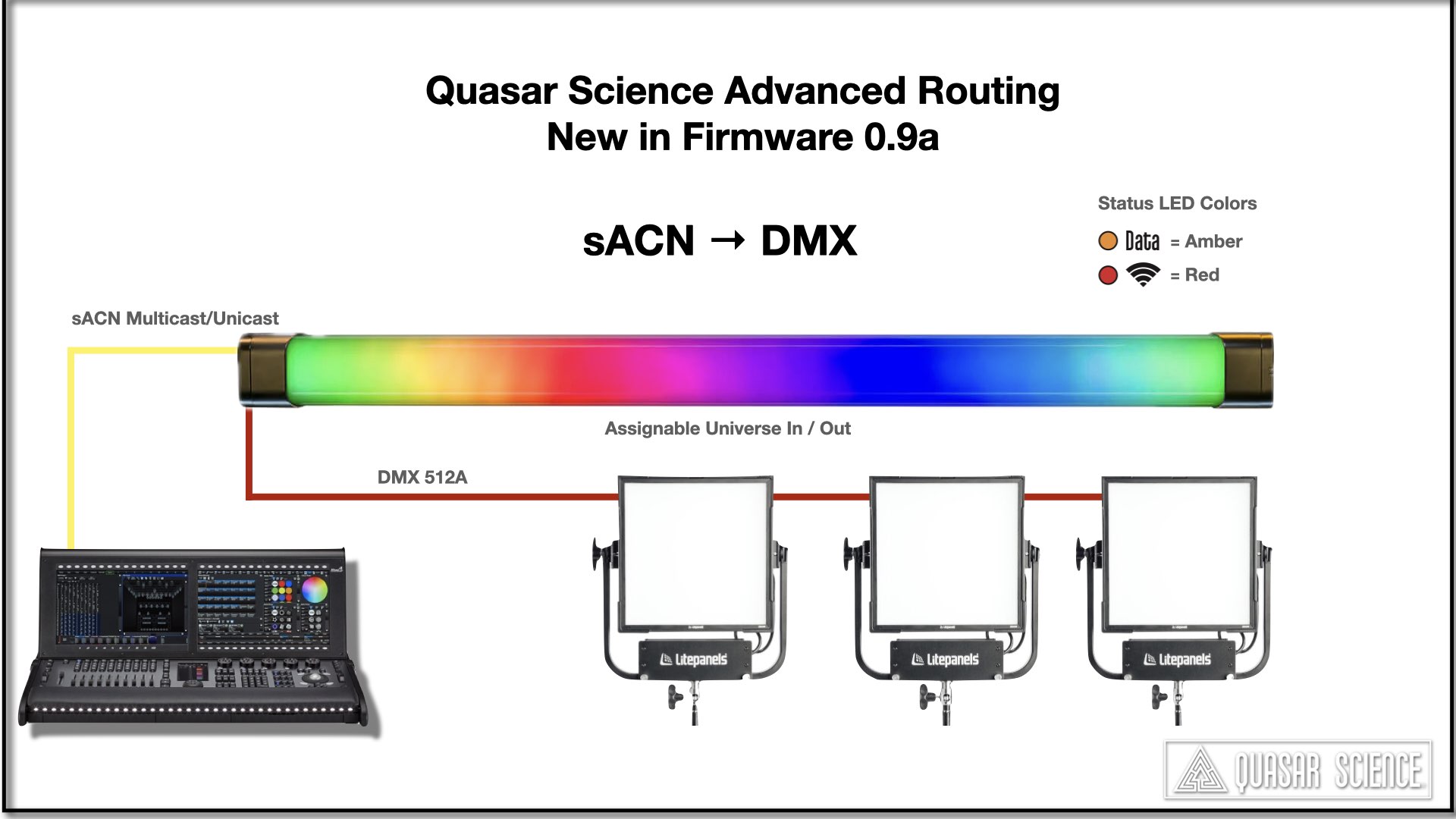

![sACN to DMX](image/166ccd473dc8df.jpg)

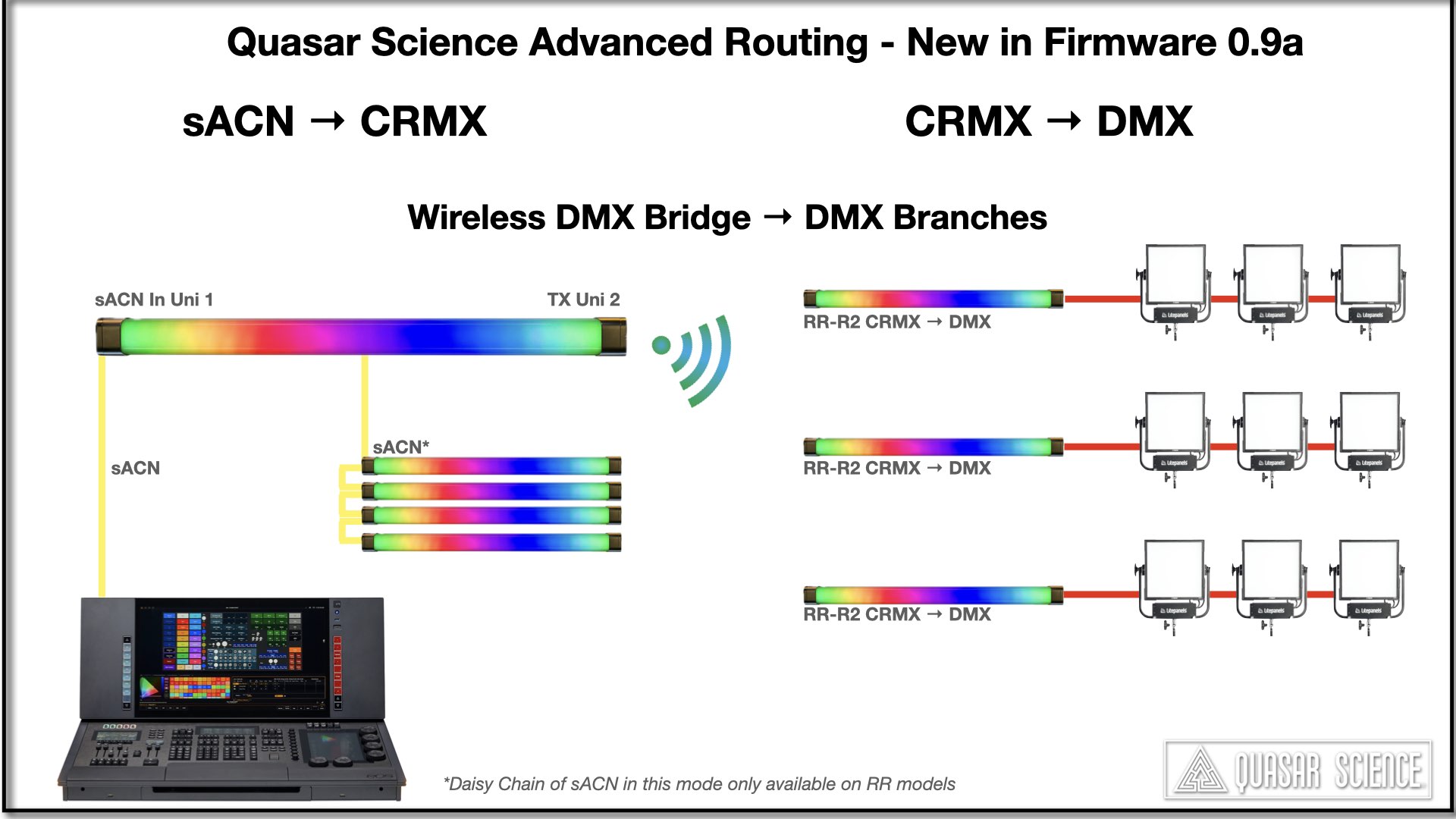

![sACN to CRMX](image/166ccd47419d16.jpg)

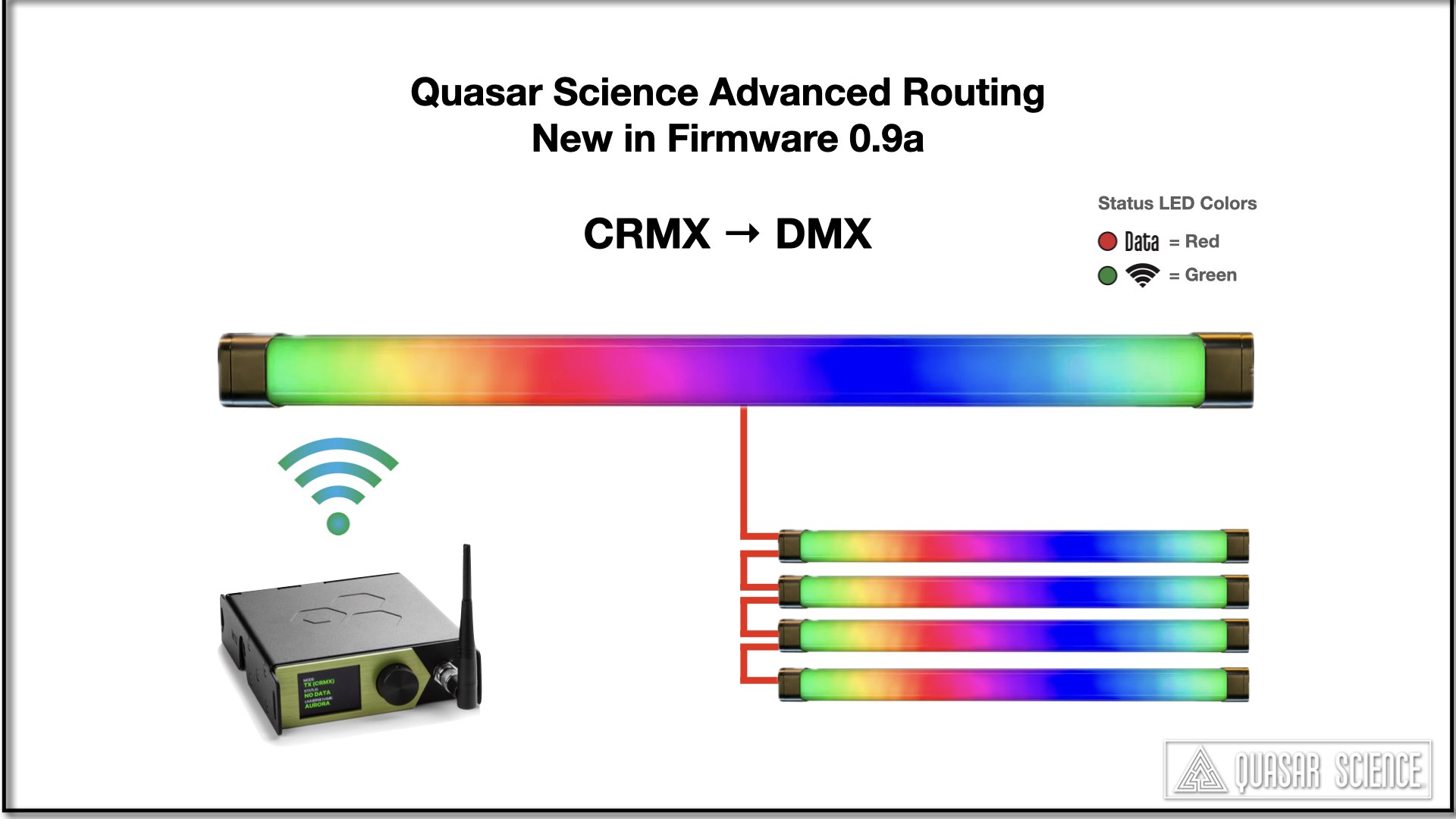

![CRMX to DMX](image/166ccd4743cfe6.jpg)
![Bluetooth to DMX](image/166ccd474624ee.jpg)
![WiFi Client to DMX](image/166ccd474818b5.jpg)
![WiFi AP to DMX](image/166ccd474a566b.jpg)
![11_Advanced_Routing_LTP_Merging.jpeg](image/166ccd474c5765.jpg)
![12_Advanced_Routing_WiFi_AP-DMX_Branch.jpeg](image/166ccd474ea2c0.jpg)
![13_Advanced_Routing_CRMX-DMX_Branch.jpeg](image/166ccd47518354.jpg)
[en]
[en] Find out more about what's new in the Quasar Science firmware 0.9 release! Please see [en] Firmware 0.9 Explained
