[en] CRMX Universe Color
[en] Firmware 0.9 adds the ability for RR-R2 fixtures to both assign or adopt Universe Color as per Lumenradio's implementation
[en] As a Transmitter (TX):

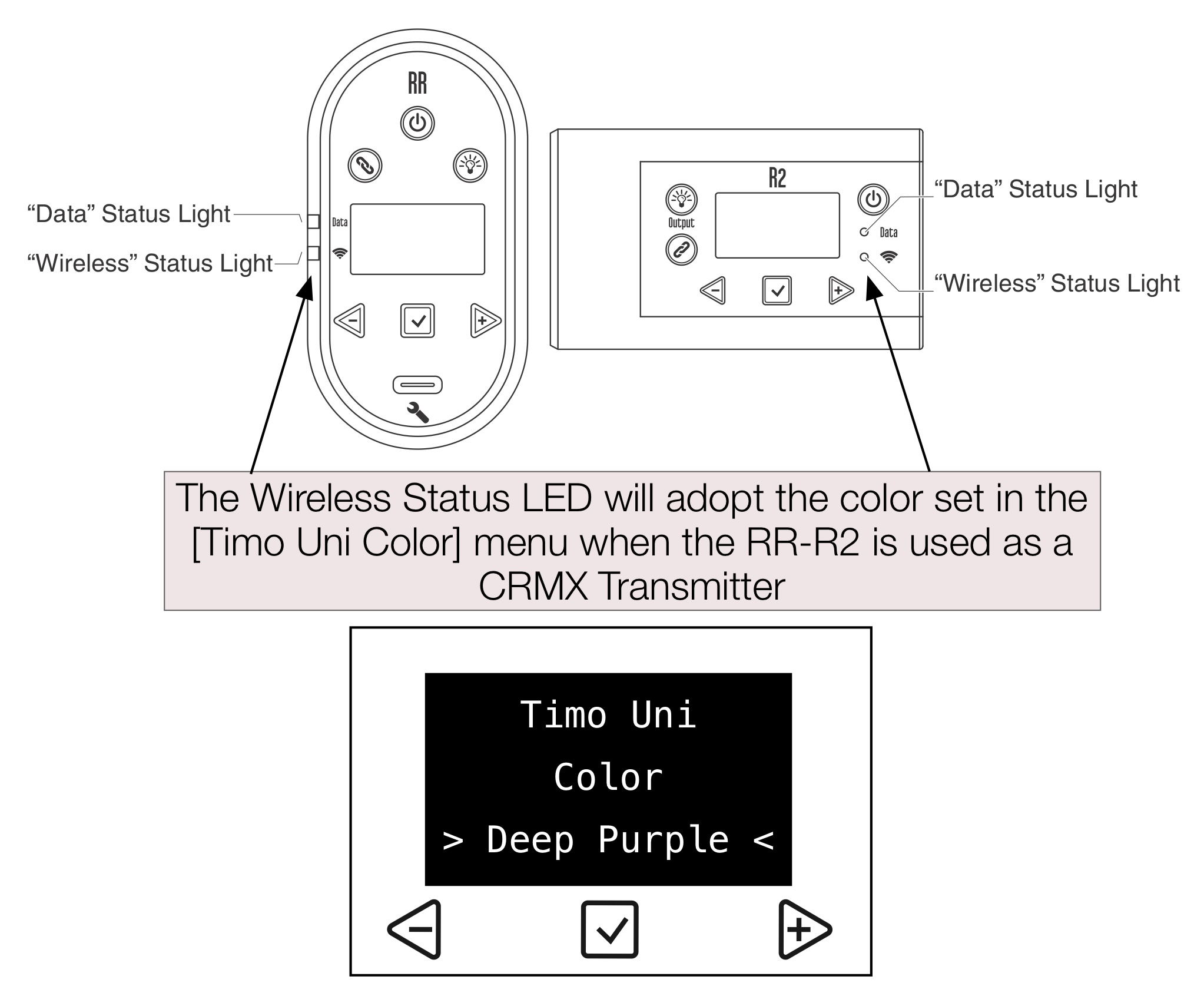

[en] When using one of the new Advanced Routing modes that turn any RR-R2 into a Wireless CRMX transmitter, a new menu option becomes available to set the Universe Color that will visible on the Wireless Status LED. The default color is Green but may be changed via the [Timo Uni Color] Menu.
 |

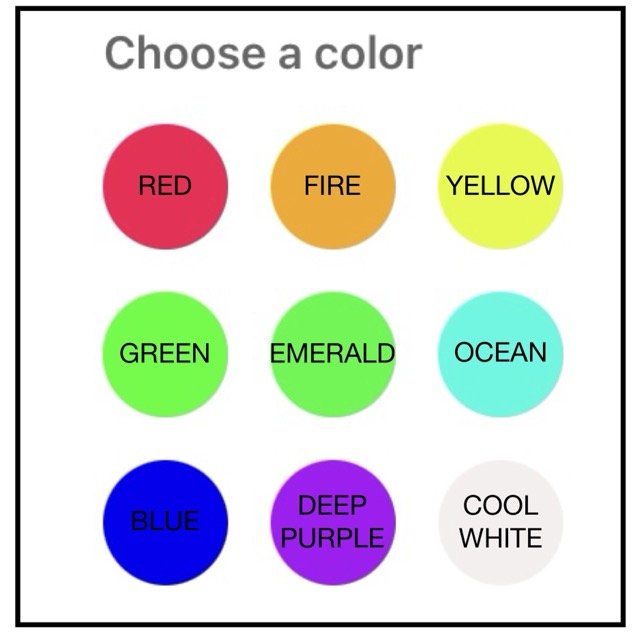

[en] The available Universe Color presets follow the options found in the CRMX Toolbox app: Red, Fire, Yellow, Green, Emerald, Ocean, Blue, Deep Purple and Cool White.
 |
[en] As a CRMX Receiver (RX):
[en] When Basic Routing is selected and the Wireless Mode of the RR-R2 is set to [Wireless DMX], the Wireless Status LED will adopt the Universe Color of the paired Transmitter if Universe Color is supported in the TX.
Note
[en] The Status LEDs will retain the adopted Universe Color for all CRMX flash patterns (i.e. Linking, Missing TX, etc.)
