Contrôle sans fil : CRMX / W-DMX

[en] each RR and R2 is equipped with a Lumenradio TimoTwo chip for wreless connectivity over CRMX or W-DMX

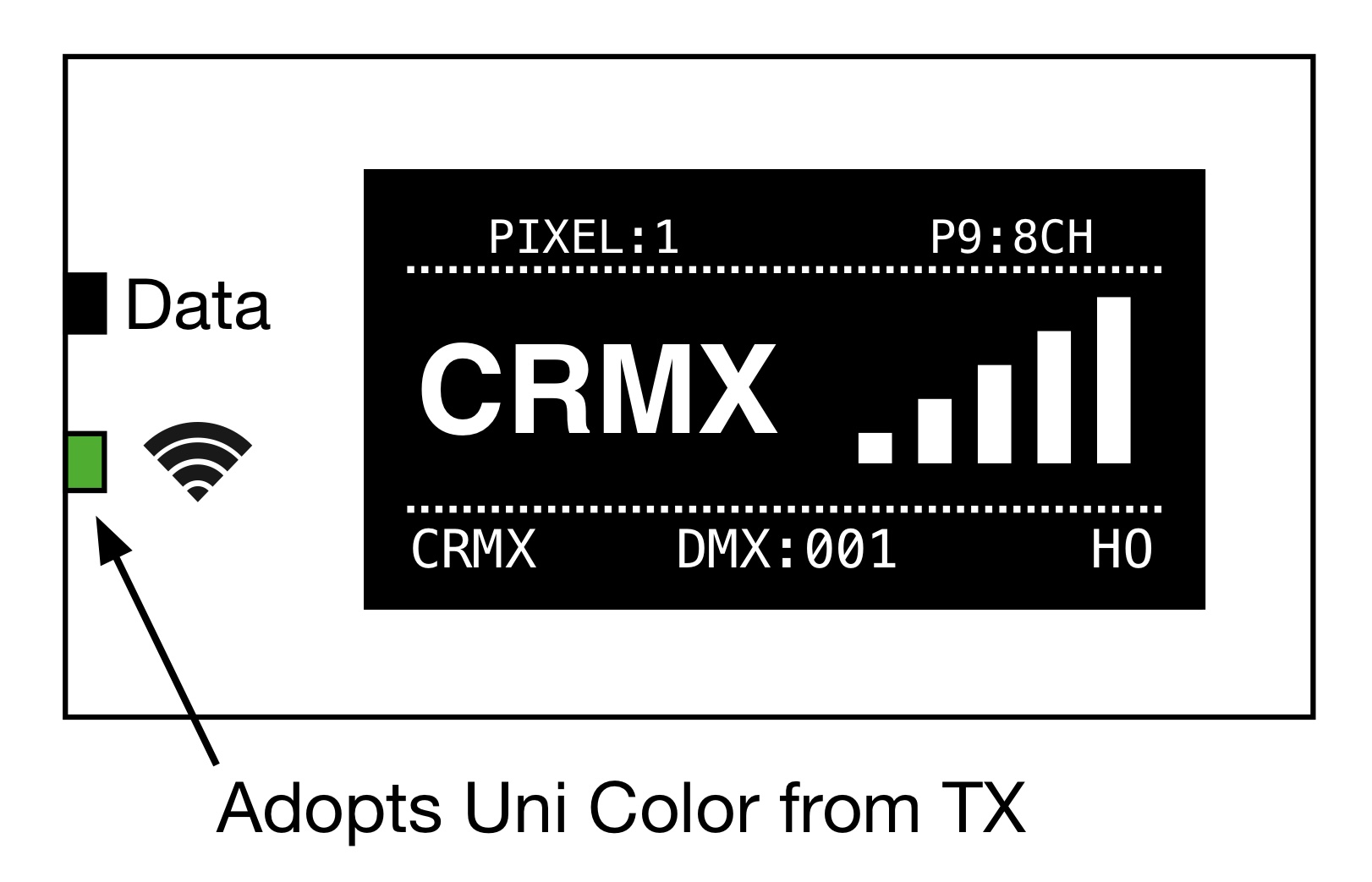

[en] With Firmware 0.9 the Wireless LED can adopt the Universe Color set by the Transmitter. Earlier firmware defaults to Green only.


[en] Stardust compatibility: YES, our fixtures are compatible with the Stardust. For now you will need to link to Universe A-H manually. Our next firmware update will have the CRMX2 options for Linking Key and Listening Universe.

Pour un fonctionnement sans fil, rendez-vous sur Config → Wireless ON ou Appuyez deux fois sur le Link Rainbow-Buttons__Pair.svg bouton

Astuce

[en] When in Basic Routing you can also double-tap the Link Rainbow-Buttons__Pair.svg button to jump directly to the [Wireless Mode] Menu.

Couplage sans fil

Pour relier un feu RR ou R2 à un émetteur

  1. Go to ConfigWireless Settings,

    réglez le mode sans fil sur "DMX sans fil"

  2. Go to ConfigStatus Lights and set to “ON

Si la Link LED clignote, maintenez la touche Link Rainbow-Buttons__Pair.svgbouton pour dissocier.

Sur l'émetteur DMX, appuyez sur le Link bouton pour appairer.

La Wireless LED commencera à clignoter et deviendra solide une fois jumelé.

Note

[en] When receiving a full universe of wireless dmx data (i.e. using the light in full pixel mode) you may, in some instances, see random color flashing across the pixels while active changes are being made (i.e. fading white up and down). This is not a bug in the Quasar Science firmware.

[en] This is an existing bug in all versions of the TimoTwo firmware v1.0.7.2 and earlier. Lumenradio is aware of this bug and has yet to fix it. If you encounter this problem please reach out to them and ask they make it a priority.
