Effects
Manual Effects
All Effects are compatible with Lead/Follow mode
Intensity: Control the Intensity of the Effect from 0% to 100%
Rate: Rate is the speed that the effect is running. 100% is normal speed. It can go from 0% to 200%
For Fire Effects:
Maximum: This is the highest value the fire effect will reach
Minimum: This is the lowest value the fire effect will reach
Effects Types

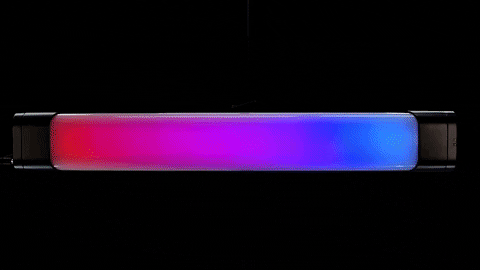

Rainbow Effect
The Rainbow Effect Scrolls through all the colors. The Rate at 100% will scroll though all the saturated colors in 6 seconds. The Rate at 0% will be 36 seconds. The Rate at 200% will be 1 second.
Short Circuit Effect
Lamp is on with bursts of turning off. The Short Circuit effect applies to the entire light.
Paparazzi Effect
Lamp is off with flashes of turning on. The Paparazzi.
Strobe
Fire Effect

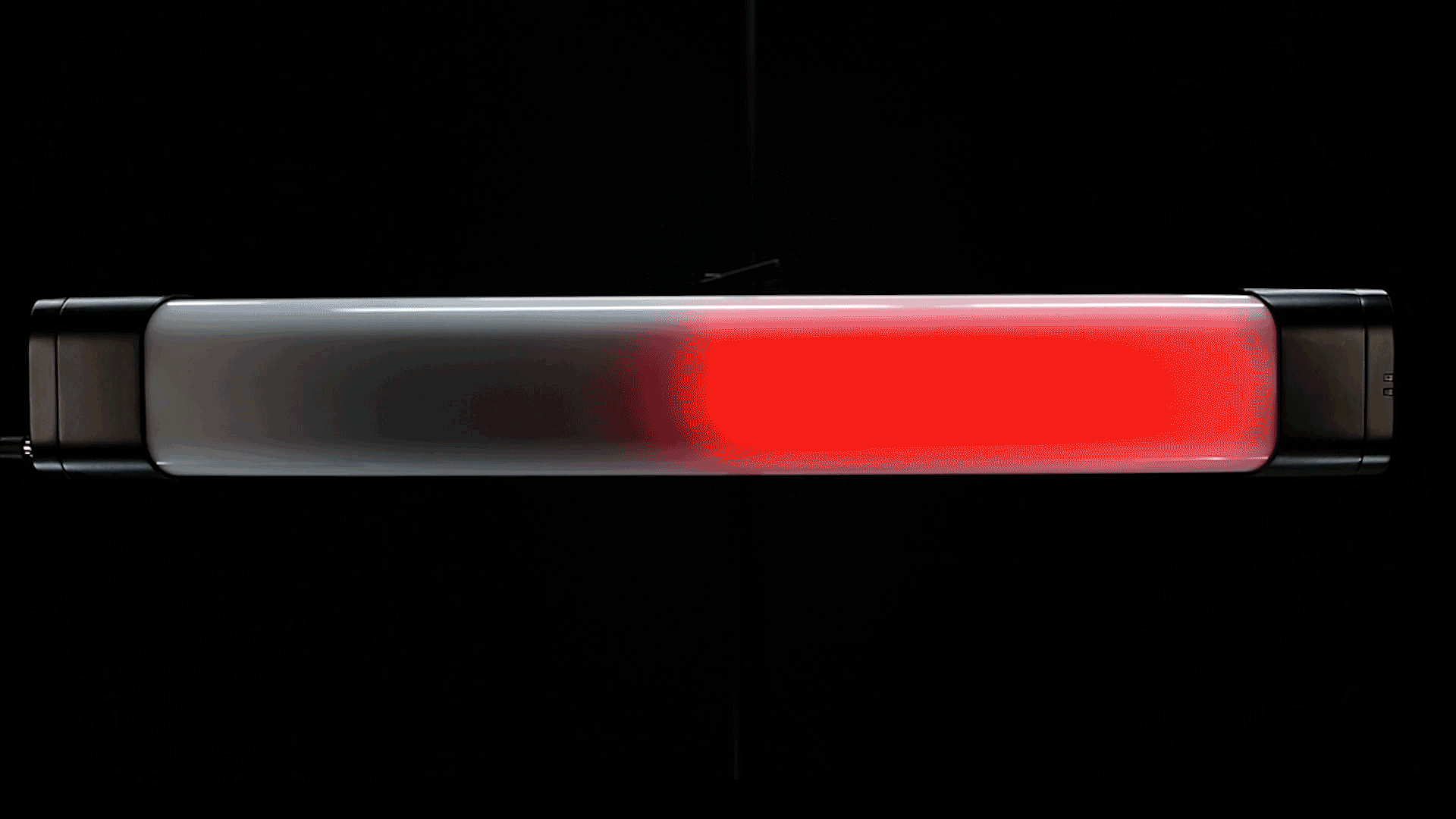

Emergency Light Effect
Demo Effect
Scroll through the Hue from 0° at varying Saturation at 1750K and 10,000K. Showcasing the Rainbow effect at Varying Saturation Levels.
DMX Effects
FX Selection:
Channel | Function | Value | Percentage | Description | Default % / DMX |
|---|---|---|---|---|---|
Channel # | FX | 0 - 27 | 0 - 10 | OFF | 0%/0 |
28 - 39 | 11 - 15 | Rainbow | |||
40 - 51 | 16 - 20 | Short Circuit | |||
52 - 64 | 21 - 25 | Paparazzi | |||
65 - 77 | 26 - 30 | Strobe | |||
78 - 90 | 31 - 35 | Fire | |||
91 - 102 | 36 - 40 | Emergency Light |
FX Rate:
Used to control the speed of the running effect
0-200% for the speed of the effect.
100% is normal speed.
Channel | Function | Value | Percentage | Description | Default% / DMX |
|---|---|---|---|---|---|
Channel # | FX Rate | 0-255 | 0-100 | 100%/128 | |
0-10 | 0-4 | No Effect | |||
11-20 | 5-7 | 0% | |||
21-119 | 8-46 | 1% to 99% | |||
120-145 | 47-57 | 100% Default | |||
146-244 | 58-96 | 101% to 199% | |||
245-255 | 97-100 | 200% |
Channel | Function | DMX Value | Hue Angle | Percentage | Description | Default % / DMX |
|---|---|---|---|---|---|---|
Channel # | Hue | 0 - 13 | 0 - 19 | 0 - 5 | Red & Blue | 0%/0 |
14 - 26 | 20 - 38 | 6 - 10 | Blue & Blue | |||
27 - 38 | 39 - 55 | 11 - 15 | Red & Orange | |||
39 - 51 | 56 - 73 | 16 - 20 | Red & White (3200) | |||
52 - 64 | 74 - 91 | 21 - 25 | Red & White (5600) | |||
65 - 77 | 92 - 109 | 26 - 30 | Blue & White (3200) | |||
78 - 89 | 110 - 127 | 31 - 35 | Blue & White (5600) | |||
90 - 102 | 128 - 145 | 36 - 40 | Green & White(3200) | |||
103 - 115 | 146 - 163 | 41 - 45 | Green & White(5600) | |||
116 - 128 | 164 - 181 | 46 - 50 | Orange & White (3200) | |||
129 - 140 | 182 - 199 | 51 - 55 | Orange & White (5600) | |||
141 - 153 | 200 - 217 | 56 - 60 | White & White (3200) | |||
154 - 166 | 218 - 235 | 61 - 65 | White & White (5600) | |||
167 - 255 | 236 - 360 | 66 - 100 | No Effect / Future Use |
Channel | Function | Value | Percentage | Description | Default % / DMX |
|---|---|---|---|---|---|
X | FX Size | 0-255 | 0-100 | 0%/0 | |
0 - 38 | 0 - 15 | Single | |||
39 - 77 | 16 - 30 | Single/Off | |||
78 - 115 | 31 - 45 | Double | |||
116 - 153 | 46 - 60 | Triple | |||
154 - 191 | 61 - 75 | Quad | |||
192 - 255 | 76 - 100 | Future Use |
FX Size:
Used to control the minimum and maximum values for Fire Effect.
It is the plus and minus variation of Intensity.
Ex. Intensity 50% with Size of 10 will be an effect from 40% to 60%
